360° Articulating Borescope - (BR510)

Free Shipping*
SKU BR510
614395005658
0 Reviews
Write a review
Original price $0
Original price $699.00 - Original price $699.00
Original price
Current price $699.00
$699.00 - $699.00
Current price $699.00

Extended Lead Time: Up to 11 business days for NIST Calibration

 More payment options
Description
Features
Specs
FAQ
Downloads

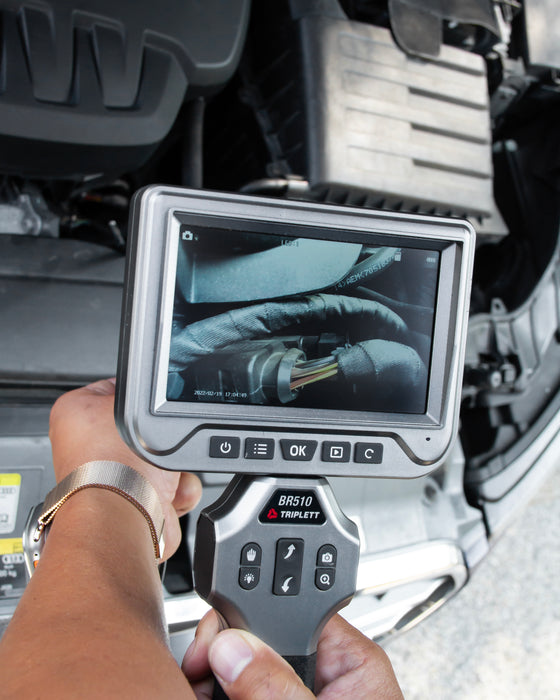

The Triplett BR510 High Definition Articulating Borescope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. It has an 6mm waterproof (IP67) camera with a 2-way articulating probe that adjusts 180° in both directions. 6 adjustable LEDs with 3 brightness levels can illuminate totally darkened areas for inspection. It features a 5" Color TFT LCD monitor with 1920 x 1080 resolution, a built-in clock/calendar, and the ability to record video (.AVI) and images (.JPG). View captured video/images on the display or transfer to your PC using the USB interface or removable SD. You can store up to 19k images/20 minutes of video (3 minute files) on the included 4GB SD card. Freeze function while recording video. Includes Borescope, 1.5m articulating probe with 6mm camera, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories  (magnet, hook, protective cap). 1 year warranty.

  • Waterproof (IP67) 6mm camera
  • 2-way articulating probe adjusts 180° in both directions
  • 8 adjustable LEDs with 3 brightness levels can illuminate totally darkened areas for inspection
  • 5" Color TFT LCD monitor with 1920 x 1080 resolution
  • Built-in clock/calendar
  • Record video (.AVI) and images (.JPG)
  • Freeze function while recording video

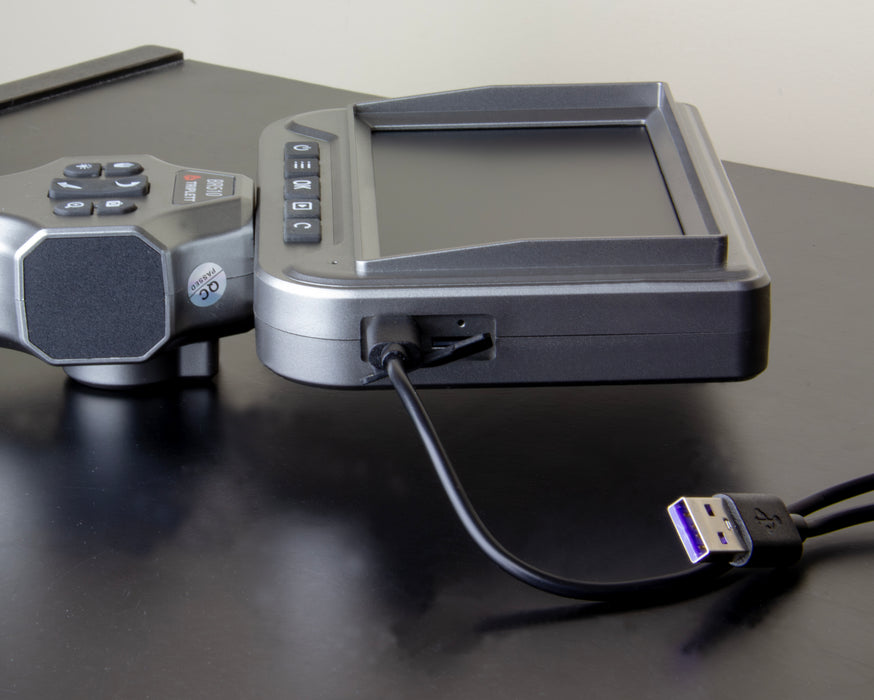

  • View captured video/images on the display or transfer to your PC using the USB interface or removable SD card
  • Store up to 19k images/20 minutes of video (3 minute files) on the included SD card
  • Supports 12 languages (English, Spanish, French, German, Italian, Russian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Portuguese, Arabic)

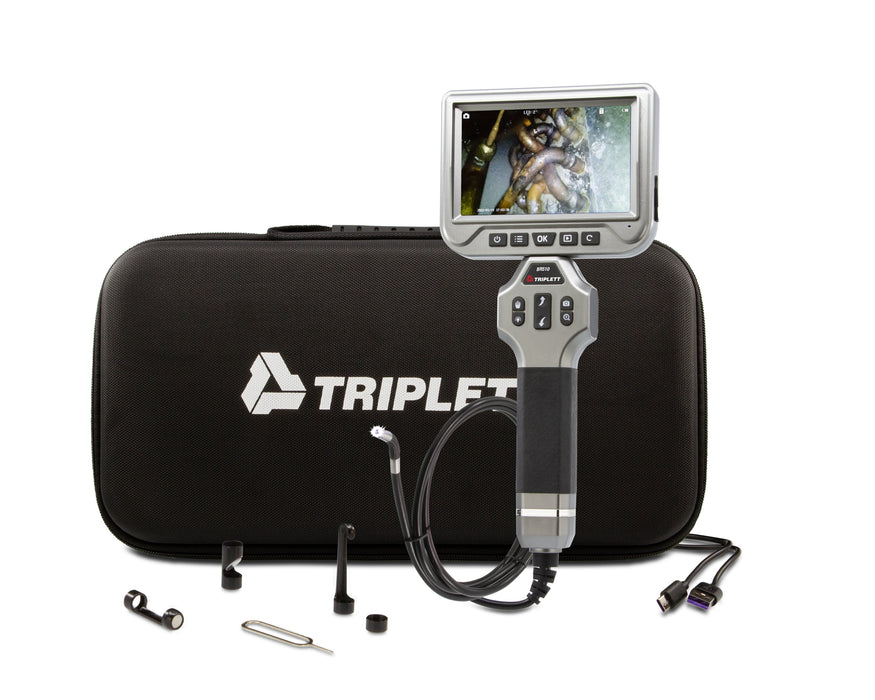

  • Includes 1.5m articulating probe with 6mm camera, 5V Li-Po rechargeable battery, SD card, USB cable, and camera accessories (magnet, hook, protective cap)
  BR510
Camera
Diameter 6mm
Field of View 60°
Depth of View 1.2" to 4.0" (3cm to 10cm)
Resolution 1920 x 1080
Articulation 360° (180° left, 180° right)
Display Unit
Display 5" Color TFT (1920 x 1080 pixels)
Interface USB
Video Output Format NTSC or PAL
Storage 4G SD Card included
Still Image Format JPEG (1920 x 1080)
Video Recording Format AVI (1920 x 1080)
Power 5V Li-Po Battery
Dimensions (Main Unit) 7.8 x 5.4 x 2" (197 x 137 x 52mm)
Weight 1.1lbs (0.5kg)
  • Q. What is a 6mm borescope?
    A. A 6mm borescope refers to a type of borescope with a flexible insertion tube that has a diameter of 6 millimeters.
  • Q. Difference between articulating borescope and articulating videoscope?
    A. Both articulating borescopes and articulating videoscopes are useful tools for visual inspection in confined spaces. The main difference lies in the level of technological advancement and the emphasis on real-time observation (borescope) versus image and video documentation (videoscope). Articulating videoscopes are typically more sophisticated and offer advanced features for capturing and recording detailed visual information.
  • Q. What are the benefits of a 6mm borescope with articulating features?
    A. A 6mm borescope with articulating features allows users to remotely control the camera tip's direction, enabling enhanced visibility around corners and bends during inspections.
  • Q. Can I use a 6mm borescope for DIY home inspections?
    A. Yes, a 6mm borescope can be utilized for DIY home inspections, allowing homeowners to inspect areas like drains, vents, and walls to identify potential issues or perform maintenance.
  • Q. Can an articulating borescope capture images and videos during inspections?
    A. Yes, articulating borescopes often have built-in features to capture images and record videos, enabling users to document inspection findings for analysis and reporting.
