Triplett 3-in-1 Circuit Breaker Finder CBF200

3-in-1 Circuit Breaker Finder - (CBF200)

Free Shipping*
by Triplett
SKU CBF200
614395002992
0 Reviews
Write a review
R 0
R 1,384.00 - R 1,384.00
R 1,384.00
R 1,384.00 - R 1,384.00
R 1,384.00

Extended Lead Time: Up to 11 business days for NIST Calibration

 More payment options
Description
Features
Specs
Datasheet
Manual
Applications

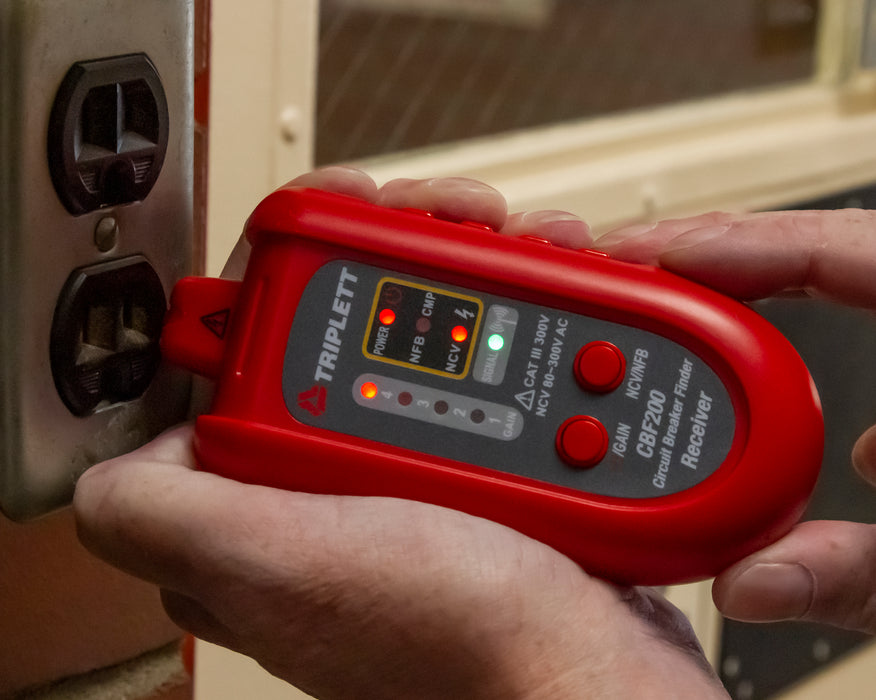

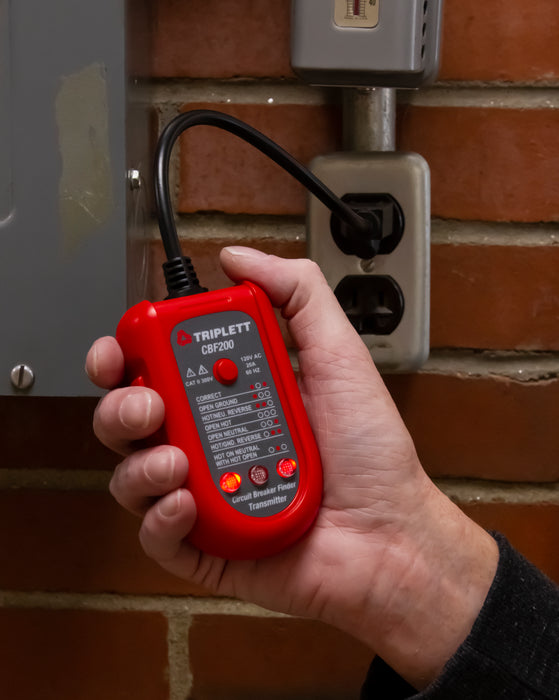

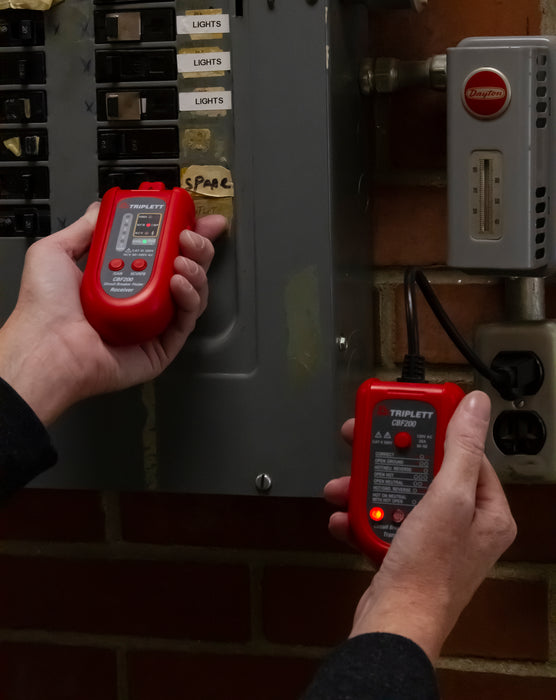

Used to locate the correct circuit breaker in a panel to which an electrical outlet or fixture is connected. The Transmitter is connected to the electrical outlet or fixture in the circuit while the receiver is used to scan the breakers in the circuit panel. The Transmitter also features a GFCI outlet tester, Comparison mode helps to identify the correct breaker when the signal strengths are very close



  • Detect faulty wiring in 3-wire receptacles
  • Lights display 6 wiring faults:
    Open Ground, Open Neutral, Hot/Ground Reverse, Open Hot, Hot/Neutral Reverse, Hot on Neutral with Hot Open
  • Test GFCI for proper operation
  • Built-in Non-Contact Voltage Detector
    (80-300V, CAT III-300V)

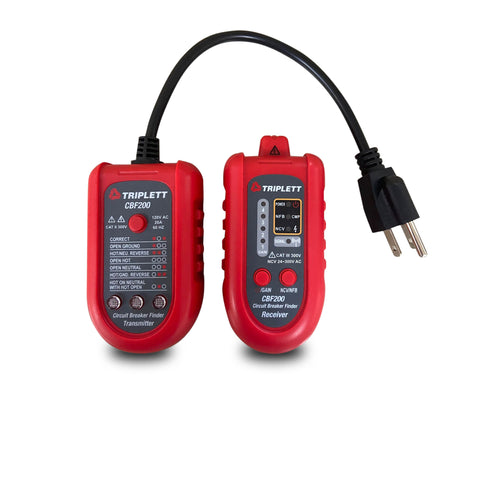

  • Includes Transmitter, Receiver and 9V Battery
  CBF200
Receiver
Power 9V Battery
Auto Power Off After 10 minutes
NCV Detector Range 24 to 600VAC
Safety Category CAT III-300V
Transmitter
Voltage 120VAC
Frequency 47-63Hz
GFCI Leakage Current 7mA @ 120VAC
Safety Category Transmitter: CAT II-300V; NCV: CAT III-300V
Dimensions Transmitter  4.7 x 2.5 x 1.3” (118.5 x 63 x 32mm)
Receiver  5.1 x 2.4 x 1.5” (130 x 62 x 36.9mm)
Weight 9.8oz (260g)

One person operation tool for residential and commercial electricians, home inspectors, kitchen and bath installers, apartment/condo property managers, DIY’ers and handymen. The tool features an exclusive comparison mode that identifies the correct breaker, even when signal strengths are very close.  The receiver also functions as a Non-Contact Voltage Detector and the transmitter also enables users to detect faulty wiring in 3-wire receptacles and tests GFCI for proper operation.
