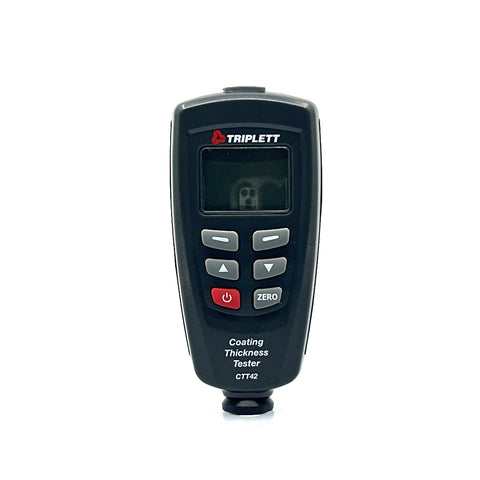

Coating Thickness Tester - (CTT42)

The Triplett Model CTT42 Coating Thickness Tester uses smart automatic recognition of ferrous (magnetic induction) and non-ferrous (eddy current measurement) substrates. Ideal for paint shops and electroplaters, chemical, automobile, shipbuilding, and aircraft industries. Use in the laboratory, workshop, or field. It has an easy-to-use menu, 8 level adjustable backlight, user-programmable high/low alarms, min/max/average, two point calibration with Zero adjust, two measuring modes (single, continuous), and  two working modes (direct and group). Built-in memory stores up to 400 readings (80 direct and 320 group). Readings can be transferred to a PC via the USB interface. Includes  two AAA batteries, USB cable, Calibration Iron, Calibration Aluminum, Precision Standards, and pouch case. 1-year warranty.

• Smart automatic recognition of ferrous and non-ferrous substrates
• Magnetic induction for ferrous substrates
• Eddy current measurement for non-ferrous substrates
• Easy-to use menu system
• Two measuring modes: Single and Continuous
• Two working modes: Direct and Group
• Two point calibration with Zero adjust
• Memory storage up to 400 readings (80 Direct and 320 Group)
• User-programmable high/low alarms
• Min/Max/Average, one or two point calibration

Datasheet

User Manual

Software
