Loop Process Calibrator - (PCAL300)

Loop Process Calibrator - (PCAL300)

Free Shipping*
by Triplett Test Equipment & Tools
SKU PCAL300
614395005450
0 Reviews
Write a review
$0
$708.00 - $1,203.00
$708.00
$708.00 - $1,203.00
$708.00
Version: Standard
 More payment options
Description
Features
Specs
Datasheet
Manual

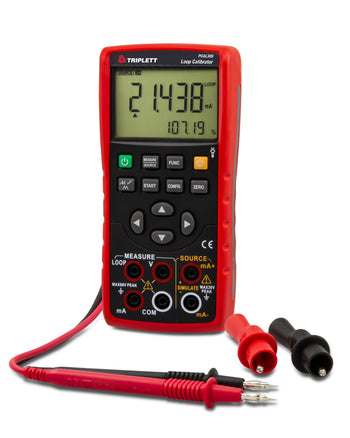

The Triplett PCAL300 Loop Process Calibrator for benchtop and field industrial process device testing and calibration can easily measure DC voltage/current and source DC mA current with an accuracy of 0.02%. It can simultaneously provide 24V loop power to transmitter while conducting mA current measurement. In addition, it features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off, and a built-in flashlight. Includes test leads, (3) AA batteries, (4) spare fuses, and latch key (for opening battery door). 1-year warranty.

PCAL300-NIST comes with Certificate of Traceability to N.I.S.T.
Please add 11 business days lead-time for the NIST calibration process



CATEGORY: PROCESS CALIBRTORS



  • Easily measure DC voltage/current and source DC mA current
  • Source and measure accuracy up to 0.02%
  • Simultaneously provides 24V loop power to transmitter while conducting mA current measurement
  • Adjustable 0-20mA/4-20mA span with % readout
  • Automatic sawtooth or triangular output current step function
  • Built-in flashlight
  • Auto power off
  • Includes test leads, (3) AA batteries, (4) spare fuses, and latch key (for opening battery door)
  PCAL300
Measurement Range (Resolution) Accuracy
DC Voltage 30V (0.001V) ±(0.02% + 2mV)
DC Current 30mA (0.001mA) ±(0.02% + 4µA)
Source Range (Resolution) Accuracy
DC Current 30mA (0.001mA) ±(0.05% + 4µA)
Loop Power 24V ±(10%)
Power (3) AA batteries
Dimensions 7 x 3.5 x 2" (178 x 89 x 51mm)
Weight 1lbs (454g)
