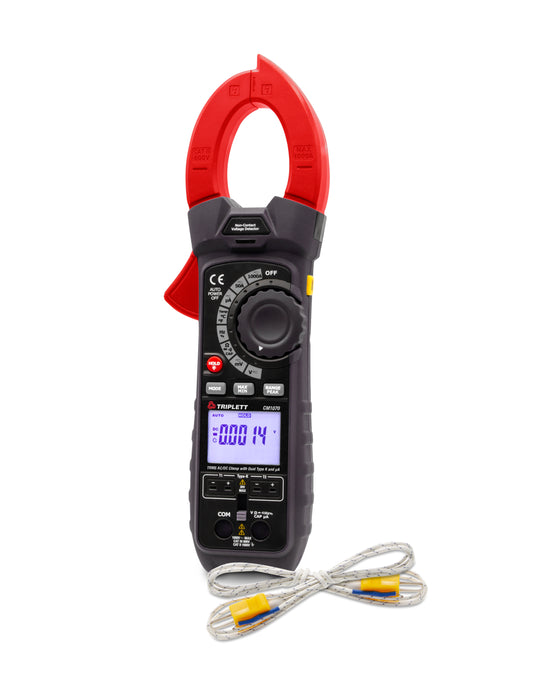

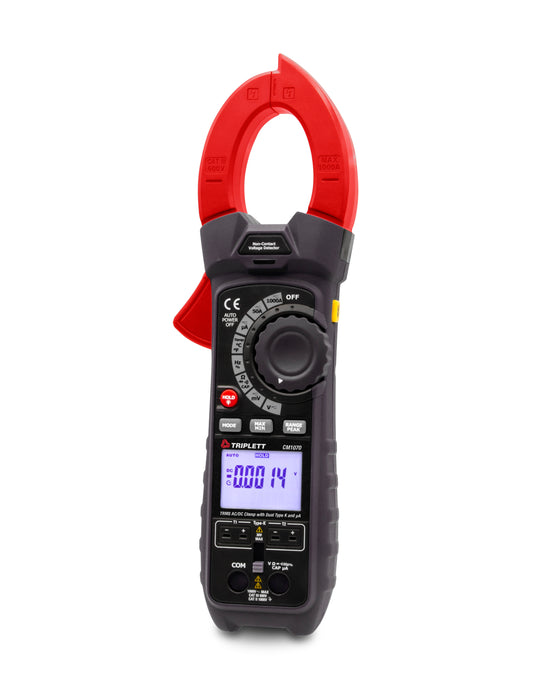

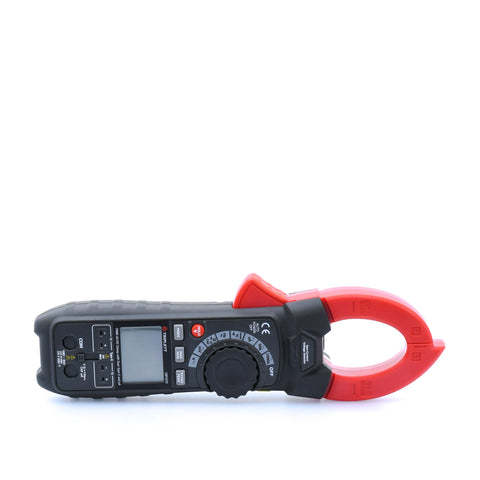

TRMS AC/DC Clamp with Dual Type K and µA (CM1070)

The Triplett Model CM1070 True RMS Clamp Meter is an essential tool for any electrical measurement task. Designed for efficiency, it measures AC and DC current up to 1000A without breaking the circuit by simply clamping around a single conductor. This not only saves time but also ensures the circuit remains undamaged. It boasts True RMS, which provides superior accuracy when measuring non-sinusoidal or noisy waveforms. The device's versatility is highlighted with additional measurements for Resistance, Capacitance, Frequency, Dual Temperature, Diode Test, and Continuity, all displayed on the dual 50,000 count backlit LCD. Other key features include Peak voltage capture, NCV Detector with LED, zero function for DCA and Capacitance, Auto power off, and a built-in flashlight. The Data Hold feature freezes the display for easy viewing. The product is categorized as CAT IV-600V for safety and comes with a 9V battery, test leads, (2) Type K thermocouple probes, a carrying case, and a 1-year warranty.

CM1000-NIST comes with Certificate of Traceability to N.I.S.T.
Please add 11 business days lead-time for the NIST calibration process

CATEGORY: CLAMP METER

• Dual Type K Input: Allows for Superheat and Differential temperature measurement, enhancing its applicability.
• µA Measurement: Crucial for HVAC flame rod current measurements.
• True RMS: Provides superior accuracy when dealing with non-sinusoidal or noisy waveforms.
• Large Clamp Jaw: The 1.9" (48mm) clamp jaw allows for secure clamping around single conductors.
• Non-Contact Voltage Detector: Features a built-in detector with LED, for safe and efficient voltage detection.
• Peak Voltage Measurement: Captures peak voltage in less than 1ms, ensuring precise measurements.
• Zero Button: Includes a zero function for DCA and Capacitance, simplifying usage and increasing accuracy.
• Advanced Functions: Offers Min/Max capture, Data Hold feature for easy viewing, and an Auto power-off function for energy conservation.
• Includes Test Leads, (2) Type K Thermocouple Bead Probes, 9V battery, and carrying case
• 1 year warranty

Datasheet

User Manual
