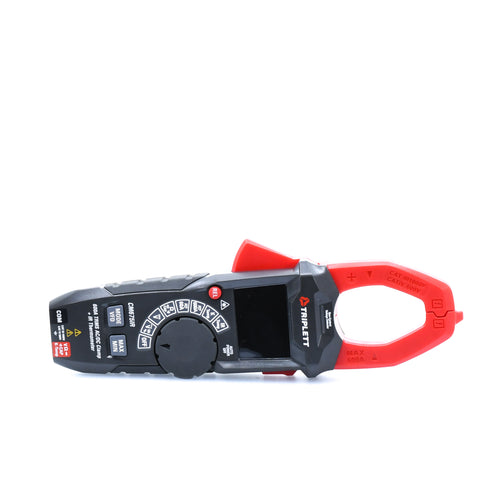

600A True RMS AC/DC Clamp Meter with 4:1 IR Thermometer (CM675IR)

The Triplett Model CM675IR True RMS Clamp Meter with Infrared Thermometer is an innovative tool for safe and efficient electrical measurements. Able to measure AC and DC currents up to 600A non-intrusively by clamping around the conductor, it saves time and maintains circuit integrity. This model stands out with its 4:1 Infrared Thermometer, which enables instant non-contact surface temperature measurements, with a built-in laser for quick target area identification. It provides a comprehensive range of readings including Resistance, Capacitance, Frequency, Type K Temperature, Diode Test, and Continuity, displayed on the 6000 count color EBTN display, and a 60-segment analog bargraph for trend analysis. Other features include a VFD low pass filter, NCV Detector with LED, Relative Mode, Min/Max capture, Data Hold, and Auto power off function. Adhering to the CAT IV-600V safety standard, this device comes with Test Leads, a Type K Thermocouple Bead Probe, (3) AAA batteries, and a carrying case, along with a 1-year warranty.

CM650-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process

CATEGORY: CLAMP METER

• Non-Contact Temperature Measurement: Instantly measures the surface temperature of objects without making contact.
• Target Identification: The built-in laser assists in quickly identifying the target area.
• EBTN Display: The 6000 count color EBTN display provides clear readings at maximum angles.
• Analog Bargraph: Features a 60-segment analog bargraph for trend visualization.
• VFD Low Pass Filter: Helps in eliminating frequency and harmonic interference during the measurement of variable frequency drives.
• Built-in Flashlight: Assists in illuminating dark areas for better visibility.
• Versatile Functionality: Offers Min/Max captures, Data Hold, and Auto power-off functions.

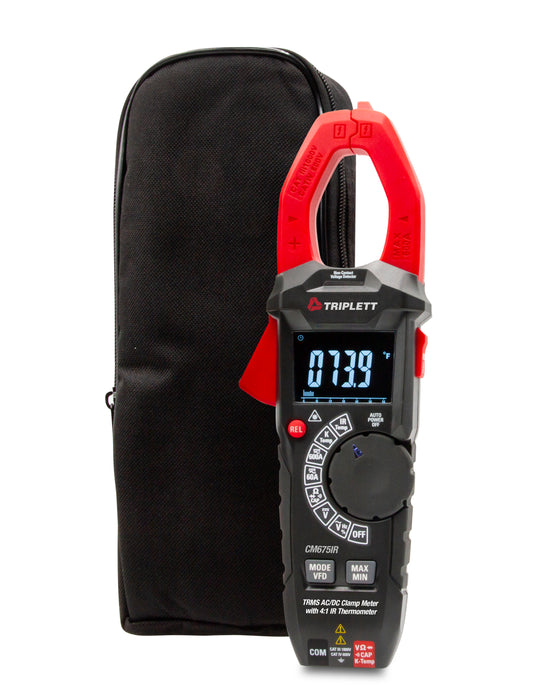

• Includes Test Leads, Type K Thermocouple Bead Probe, (3) AAA batteries, and carrying case
• 1 year warranty

Datasheet

User Manual
