A Step-by-Step Guide to Use a Wire Tracer

A wire tracer is one of the important tools used in most electrical and troubleshooting tasks. It is used to locate, identify, and trace open wires, circuit breakers, and more in closed wiring systems. Today, they find application for cable and network installations across industry segments such as HVAC systems, plumbing and irrigation systems, and more. Is that all? Obviously not. Would you like to know about wire traces? This post offers a step-by-step guide on how to effectively use a wire tracer.

Understanding Wire Tracers

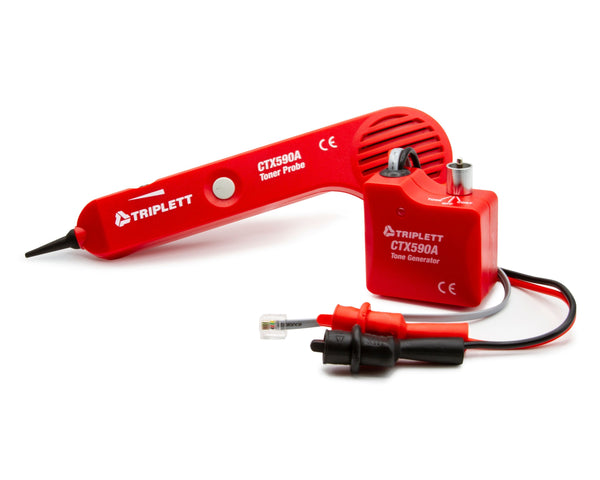

A wire tracer typically consists of two main components: a transmitter and a receiver.

Transmitter
- The transmitter is connected to the wire you want to trace or locate. It sends a signal, typically a tone or a digital signal, along the wire.
- Some wire tracers come with additional features such as adjustable signal strength, which can be helpful in different scenarios.
Receiver
- The receiver is equipped with a sensor or probe that detects the signal emitted by the transmitter.
- It usually has a speaker or display or both that provides audible or visual, or audiovisual message to help you accurately locate and trace the wire.

Step-by-Step Guide on Using a Wire Tracer

Here are some steps that will help you understand how to use a wire tracer effectively.

Ensuring Safety and Connection
- First and foremost, prioritize safety by using a circuit tester to confirm that the cable or wire you intend to trace is de-energized.
- Disconnect the wire from its terminal or outlet, or use the accurate connector to plug the wire tracer into the terminal or outlet.
- If an adapter is not an option, attach the clips from the tone generator directly to the disconnected wire or cable.
- Connect one clip to the wire and the other to a ground wire if available.
- Attach both clips to separate cables if there's no ground wire.
Activating the Transmitter
- To activate the tone generator, press the On/Off button on the transmitter once.
- Check the LED on its front panel to verify that the transmitter functions correctly.
- If the LED is blinking, it indicates that the transmitter is in good working order.
Adjusting Tracer Sensitivity
- While pressing and holding the On/Off button, hold the wire tracer's end near the transmitter on top of the tracer unit.
- Listen carefully for a distinctive warbling sound emanating from the tracer.
- To ensure optimal reception, fine-tune the sensitivity wheel on the tracer until the warbling sound is clear and discernible.
Tracing the Wire
- Now, it's time to trace the wire.

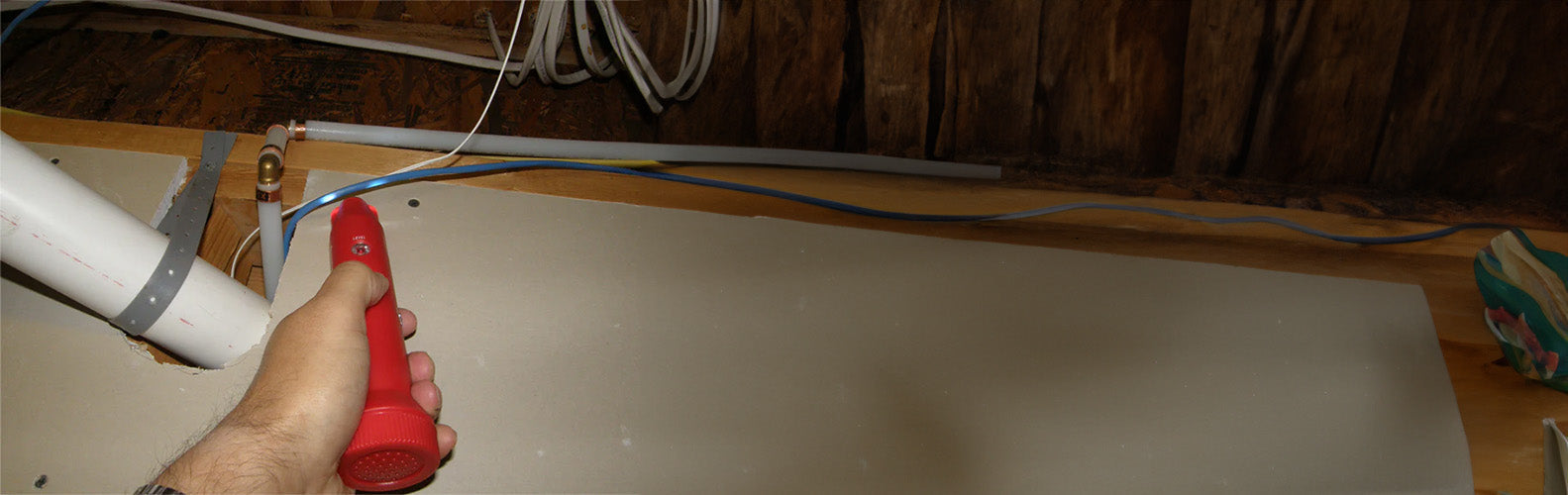

- Place the end of the tracer against the wire you suspect to be the starting point connected to the transmitter.
- Listen attentively for the warbling sound emitted by the tracer.
- If no clear sound is detected, test other cables that are under suspicion.
- For future reference, mark the wire that responds with the warbling sound.
Addressing Wire Breaks
- If you cannot hear the warbling sound from any of the suspected wires, it may be because of breaks or interruptions in the lines that prevent the transmitter from sending a clear signal.
- In this case, perform continuity tests on the suspect wires to identify breaks.
- Repair any damaged wires or cables and repeat the wire tracing steps to ensure accurate results.

Following these step-by-step instructions, you can use a wire tracer effectively and safely for your wiring and cable tracing needs.

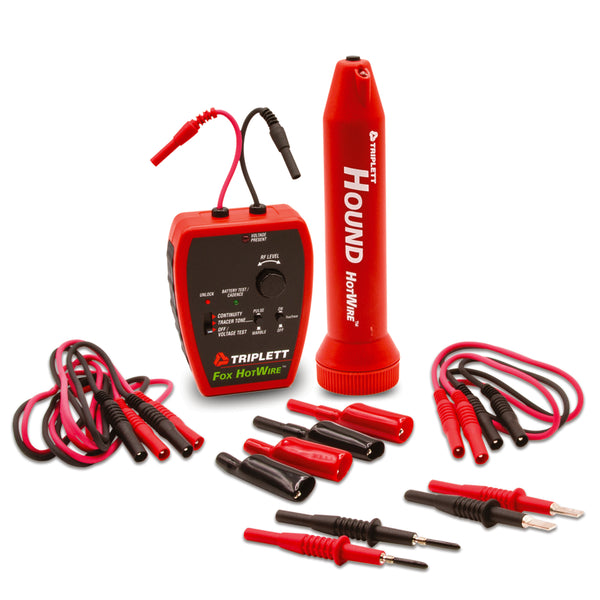

If your next electrical application requires a wire tracer, you must source it from a reliable supplier like Triplett. With a vast years of market presence, the company offers high-quality wire tracers in varied specifications. Cable toner and tracer, tone generator and probe, and fox & hound wire tracers are some popular names it is known by. Are you interested to know more about these products? If that sounds yes, browse the company’s complete inventory of wire tracers. Stay tuned to keep yourself updated.
