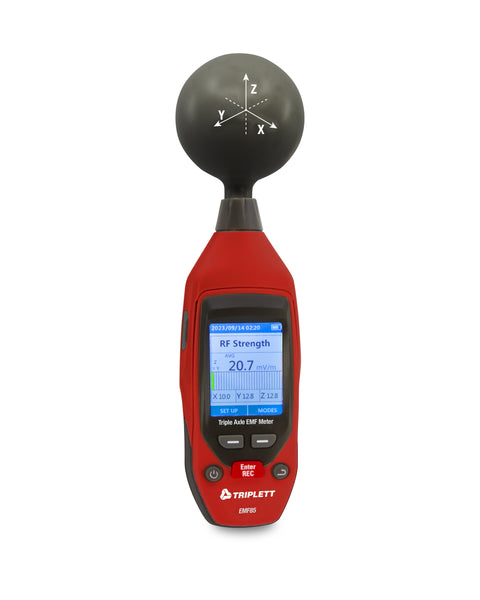

Triple Axis EMF Meter - (EMF85)

The Triplett Model EMF85 8GHz Triple Axis EMF Meter is designed for wide-band monitoring of high frequency radiation from 50MHz to 8GHz including the measurement of electromagnetic radiation intensity of cellular phone base station antennas, wireless communication applications (CW, TDMA, GSM, DECT), RF high frequency transmitter power measurement, Wi-Fi network detection and Installation, detection of radiation leakage from microwave ovens, evaluation of electromagnetic wave safety in company or home environments, and other applications. It features non-directional measurement using a built-in 3-axis (XYZ) probe with readout in 3 units of measure: µW/m², mW/m², W/m², µW/cm², mW/cm², mV/m , V/m. It displays Actual, Average, Max and Max Average measurements on the easy-to-read color LCD display with 4 brightness levels and has a programmable audible high limit alarm. You can manually store up to 10,000 points and recall them on the display using the historical data function arranged in order of record and time or transfer the recorded data to your PC in csv format using the built-in USB interface. Includes rechargeable 3.7V Li-ion battery, USB cable, and soft carrying case. 1 year warranty.

CATEGORY: ELECTROMAGNETIC FIELD DETECTOR

• Designed for wide-band monitoring of high frequency radiation from 50MHz to 8GHz
•  Non-directional measurement with built-in 3-axis (XYZ) probe
• Readout in 3 units of measure: µW/m², mW/m², W/m², µW/cm², mW/cm², mV/m , V/m
• Displays Actual, Average, Max and Max Average measurements
• Easy-to-read color LCD display with 4 brightness levels
• Programmable high alarm
• Manually store/recall up to 10,000 points
• Historical data can be viewed on the display arranged in order of record and time
• USB interface for transfering recorded data to your PC in csv format
• Includes rechargeable 3.7V Li-ion battery, USB cable, and soft carrying case
